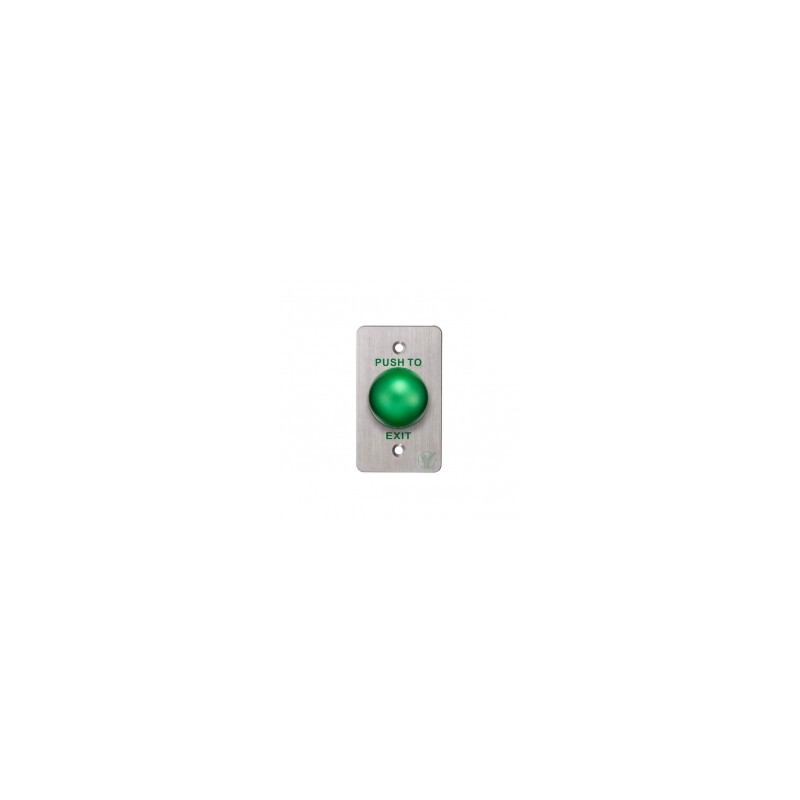

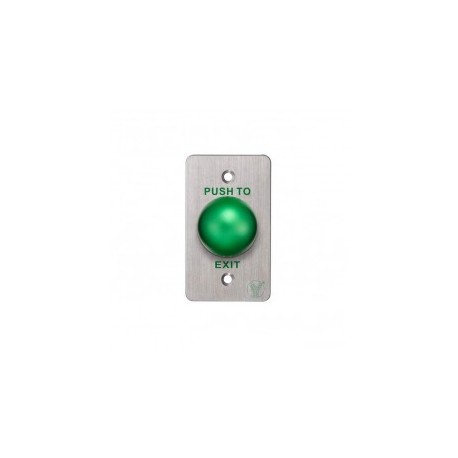

Release button Button for access control electric door Mushroom button Green stainless steel NO and NC

DESCRIPTION YLI model NZBTON818 is a stainless steel door release button with size 86Lx50Wx40.1H (mm), which is the most common and widely used in access control systems.       SPECS   Dimensions: 86Lx50Wx40.1H (mm). Standard structure: 304 stainless steel panel with metallic button. Rated current: 3A at 36VDC Max. Output contact: NO / NC / COM. Mechanical life: 500,000 tested. Suitable for door: All types of doors. Operating temperature: -10°C~+55°C. Operating humidity: 0-95% (relative humidity). Panel material: 304 stainless steel with cable finish. Weight 0.18kg. PBK-818A   FUNCTIONS   Mechanical pinless design. Sleek stylish stainless steel panel. With bottom box, easy to install. 500,000 test cycles. Two contact output, suitable for all kinds of locks. The best option for access control.     *The box for its installation is sold separately Reference NZBTON818In stock15 ItemsSpecific References Write your reviewNo customer reviews for the moment.Write your reviewRelease button Button for access control electric door Mushroom button Green stainless steel NO and NCQuality12345Title for your review*Your review*Your name*Required fields* Send or Cancel
