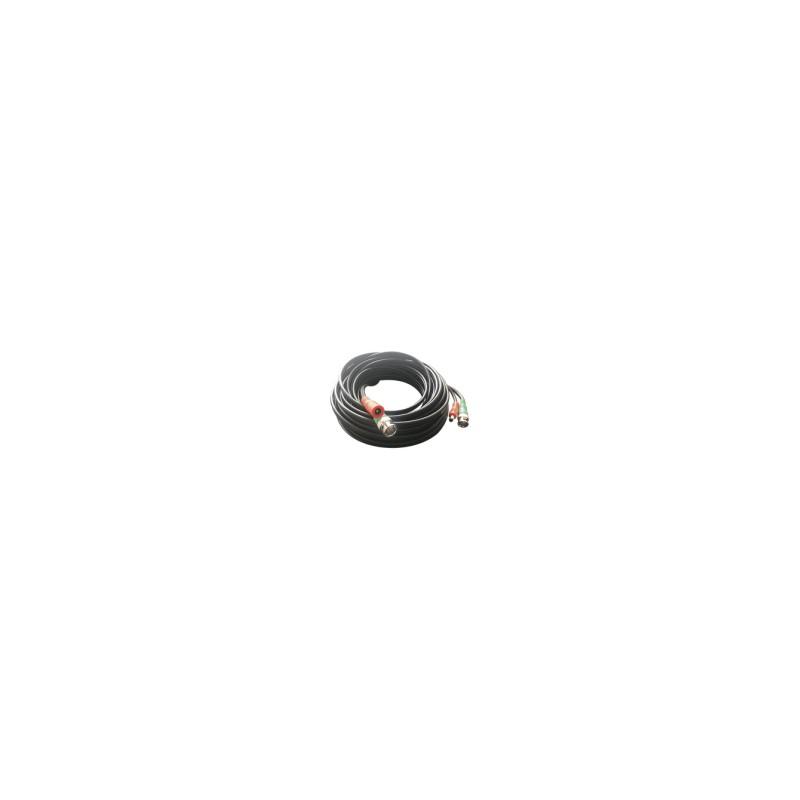

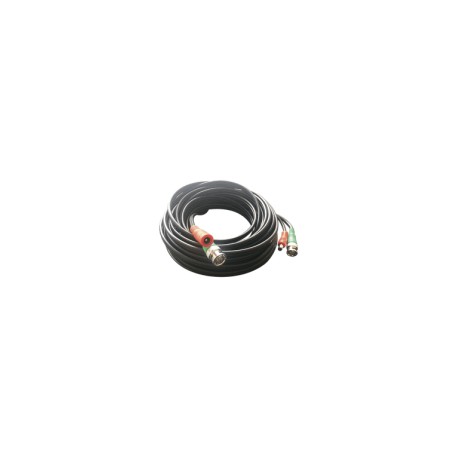

20 Meter Armored Cable for Video and Power up to 4k with BNC Connectors and External and Internal Power Cable for Camera

General information The NZCOAX20K model cable is a CCTV video and power cable consisting of a coaxial cable and a two-core power cable. There is a BNC connector and a DC5.5 connector at each end of the cable for camera video transmission and power supply. It is convenient to install the cable in a generic wiring system.   heavy duty cord     The NZCOAX20K consists of a high-purity oxygen-free copper conductor, making it an excellent transmission medium; It also has a fire-retardant PVC outer coating for indoor and outdoor use resistant to weathering.       Compatibility     The NZCOAX20K is compatible with all high-definition and analog DVR systems, this cable can transmit video and power simultaneously, saving wiring and no delay. It can support the following resolutions of 720p / 1080p / 4MP / 5MP / 4K, AHD / CVI / TVI / CVBS security camera systems.   Main features Driver:   Material Coaxial cable / power cable: oxygen-free copper   Diameter Coaxial cable / power cable: 7 / 0.127 mm ± 0.01 mm (7 / 0.005 "± 0.0004")   Coaxial cable: 28AWG; Power cord: 26AWG   Isolation:   Material Coaxial cable: PE foam; Power cord: PVC   Thickness Coaxial Cable: ≥ 0.6mm (0.024"); Power Cable: ≥ 0.2mm (0.008")   Coaxial Cable Diameter: 1.9mm ± 0.2mm (0.075" ± 0.008"); Power Cable: 1.1mm ± 0.2mm (0.043" ± 0.008")   Color Coaxial cable: 1 core (white); Power cable: 2 cores (red and black)   Inner Shield:   Material Coaxial cable: single-sided aluminum foil composite; Power cord: NA   Specification Coaxial cable: T ≥ 0.026 mm (0.001 "), W: 7 mm ± 1 mm (0.276" ± 0.039 "); Power cable: NA   Coaxial cable overlap rate: ≥ 25%; Power cord: NA   outer shield   Material Coaxial cable: Copper-clad aluminum (28) + oxygen-free copper (4); Power cord: NA   Specification Coaxial Cable: 16 × 2 × 0.10mm ± 0.01mm (0.004" ± 0.0004"); Power cord: NA   Coaxial Cable Lay Length: 18mm ± 6mm (0.71" ± 0.24"); Power cord: NA       Shield coverage Coaxial cable: ≥ 45%; Power cord: NAReference NZCOAX20KIn stock215 ItemsSpecific References Write your reviewNo customer reviews for the moment.Write your review20 Meter Armored Cable for Video and Power up to 4k with BNC Connectors and External and Internal Power Cable for CameraQuality12345Title for your review*Your review*Your name*Required fields* Send or Cancel
