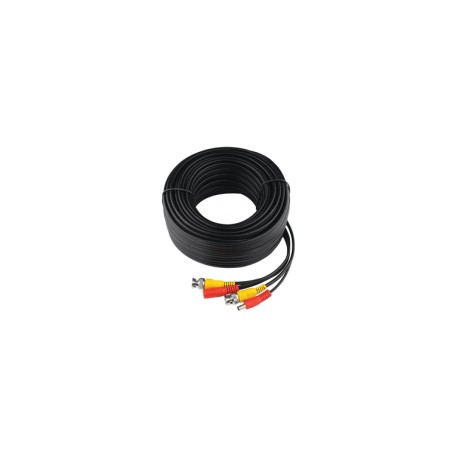

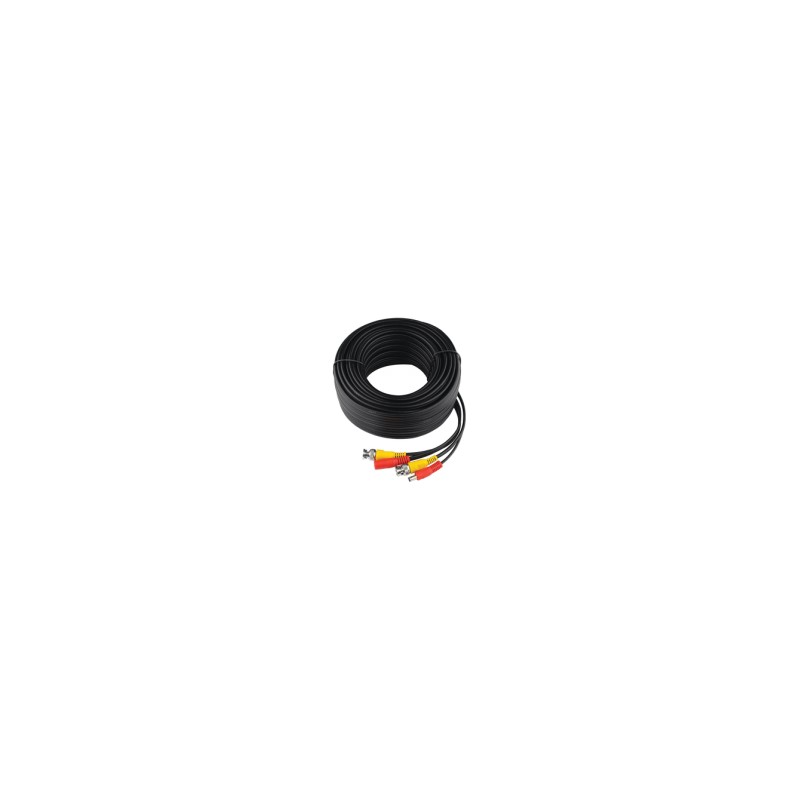

Armored cable for cameras with connectors of 10 meters video in 4k Current and Video Indoor - Outdoor

General information The model NZCOAX104K cable is a CCTV video and power cable consisting of a coaxial cable and a two-core power cable. There is a BNC connector and a DC5.5 connector at each end of the cable for camera video transmission and power supply. It is convenient to install the cable in a generic wiring system.   heavy duty cord     The NZCOAX104K consists of a high-purity oxygen-free copper conductor, making it an excellent transmission medium; It also has a fire-retardant PVC outer coating for indoor and outdoor use resistant to weathering. Compatibility The NZCOAX104K is compatible with all high-definition and analog DVR systems, this cable can transmit video and power simultaneously, saving wiring and delay. It can support the following resolutions of 720p / 1080p / 4MP / 5MP / 4K, AHD / CVI / TVI / CVBS security camera systems.           Main features Driver:   Material Coaxial cable / power cable: oxygen-free copper   Diameter Coaxial cable / power cable: 7 / 0.127 mm ± 0.01 mm (7 / 0.005 "± 0.0004")   Wire gauge Coaxial cable / power cable: 28AWG   Isolation:   Material Coaxial cable: PE foam; Power cord: PVC   Thickness Coaxial Cable: ≥ 0.6mm (0.024"); Power Cable: ≥ 0.2mm (0.008")   Coaxial Cable Diameter: 1.9mm ± 0.2mm (0.075" ± 0.008"); Power Cable: 1.1mm ± 0.2mm (0.043" ± 0.008")   Color Coaxial cable: 1 core (white); Power cable: 2 cores (red and black)   Inner Shield:   Material Coaxial cable: single-sided aluminum foil composite; Power cord: NA   Specification Coaxial cable: T ≥ 0.026 mm (0.001 "), W: 7 mm ± 1 mm (0.276" ± 0.039 "); Power cable: NA   Coaxial cable overlap rate: ≥ 25%; Power cord: NA   outer shield   Material Coaxial cable: Copper-clad aluminum (28) + oxygen-free copper (4); Power cord: NA   Specification Coaxial Cable: 16 × 2 × 0.10mm ± 0.01mm (0.004" ± 0.0004"); Power cord: NA   Coaxial Cable Lay Length: 18mm ± 6mm (0.71" ± 0.24"); Power cord: NA   Shield coverage Coaxial cable: ≥ 45%; Power cord: NA Reference NZCOAX104KIn stock135 ItemsSpecific References Write your reviewNo customer reviews for the moment.Write your reviewArmored cable for cameras with connectors of 10 meters video in 4k Current and Video Indoor - OutdoorQuality12345Title for your review*Your review*Your name*Required fields* Send or Cancel
