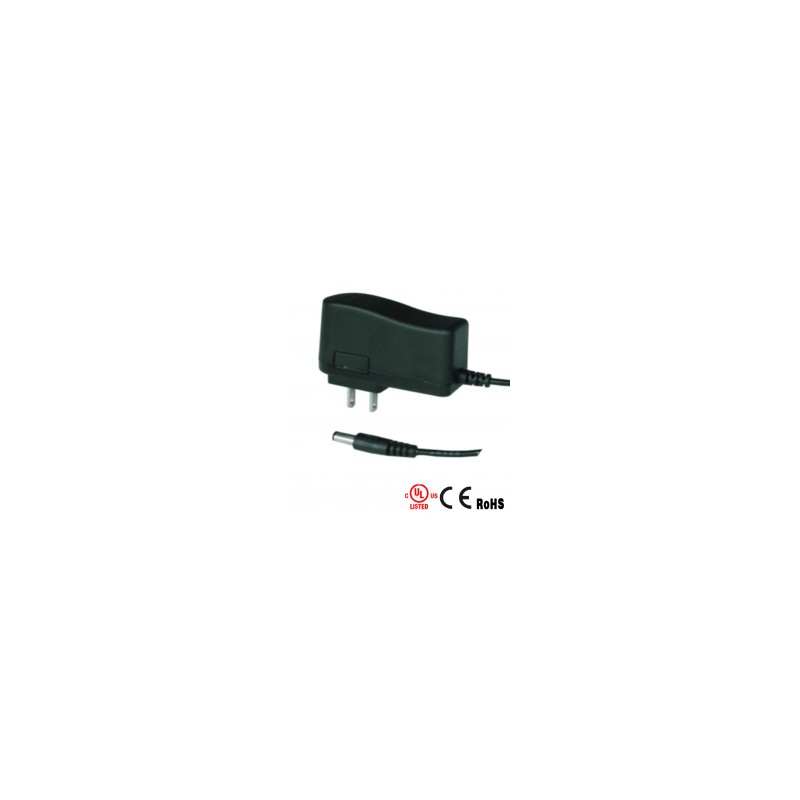

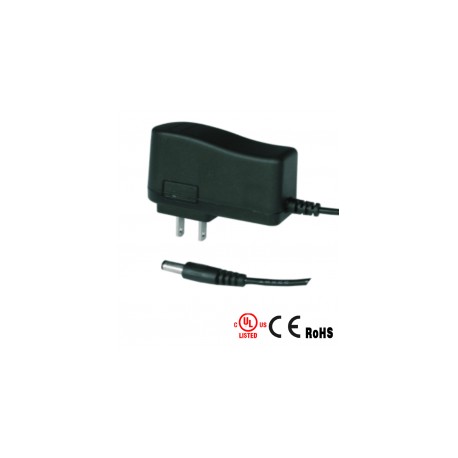

Power supply of 12V volts 0.50a Amper Source of Medium ampere Consumption 5w special for CCTV

General information. The NZFP12V05 model current transformer offers us a wide range of solutions in electronic equipment, access controls and is ideal for cameras with 6w consumption, thanks to its 12V at .5 Amp. and its protections against short circuits, overvoltages, overloads both input and output and its function of low automatic restart.       Specifications.         Input voltage range 100-240 VAC Output voltage 12VDC Output current 0.5Amp Output power 6W Efficiency > 80% Working temperature -0°C ~ 40°C Storage temperature -25°C ~ 75°C Humidity 85% Rated input voltage 100-240 VAC Input voltage range 100-240 VAC Input current <0.35A Input frequency range 50-60Hz No-load voltage 12V DC ± 5% Full Load Voltage 11.7V DC ± 5% Current range 0.1-0.5A Ripple and noise <100mV Peak <150mV Start time <3s Hold time <20s Overcurrent protection Rated current 150% Short circuit protection YES Reference NZFP12V05In stock356 ItemsSpecific References Write your reviewNo customer reviews for the moment.Write your reviewPower supply of 12V volts 0.50a Amper Source of Medium ampere Consumption 5w special for CCTVQuality12345Title for your review*Your review*Your name*Required fields* Send or Cancel
