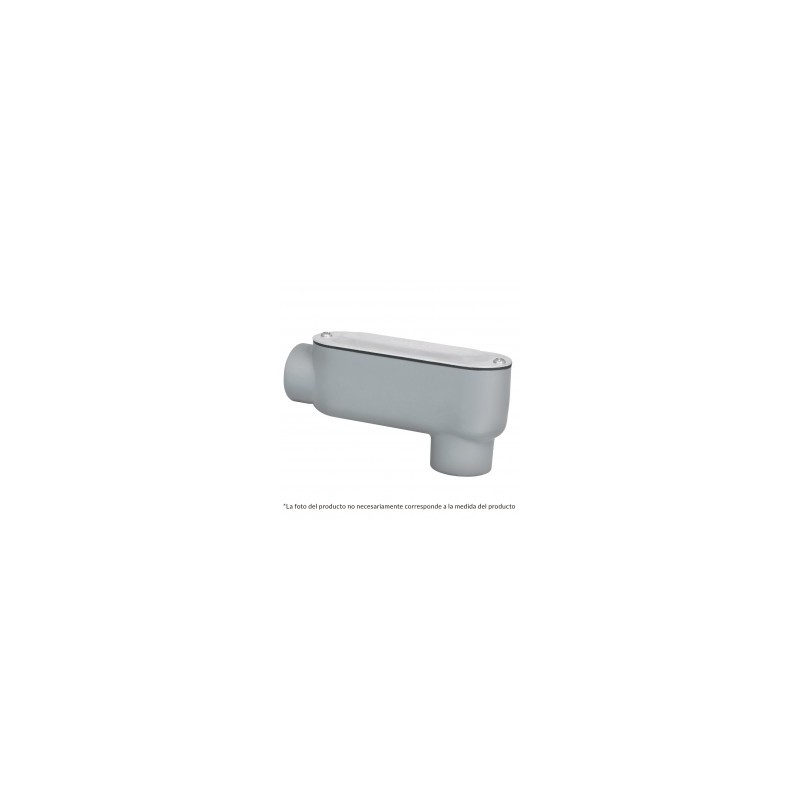

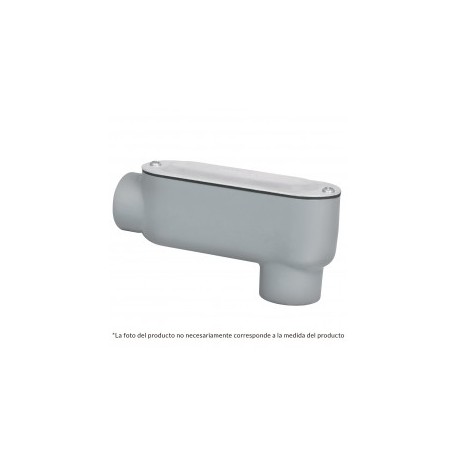

3/4" (19.05 mm) Type LB Condulet Box Includes cap and screws. Box for 3/4" inch Type LB Conduit

Featured Features:       Tube Nominal Size: 3/4"     Configuration Type: LB     Material:         Body: Diecast aluminum.         Lid: Aluminum foil.         Screws: Galvanized.     Finish: Polymerized epoxy/polyester electrostatic paint.     NPT thread for use with rigid conduit and IMC.     Assembled cover and screws.     Packaging: Provides watertightness (Not included).     Manufactured based on: UL 514 A, CAN/CSA-C22.2 No. 18-92.   Specific characteristics:       Volume: 106.4 cm³     Weight: 0.168 Kg.     Maximum Conductor Number and Gauge: 3, #6 AWG.     Supplier code: 28.01.0088.C   Extra Advantages:   Thanks to the pressure injection molding method, its aluminum walls are compact and free of porosity, obtaining dimensional stability and extraordinary resistance to be used in any type of industry, weighing 3 times lighter than other molding systems.       NPT threads concentric to the mouth for a perfect seal, fit and squareness at 90° in the assembled tube.     Resistant to humid and highly corrosive environments Reference 46971In stock156 ItemsSpecific References Write your reviewNo customer reviews for the moment.Write your review3/4" (19.05 mm) Type LB Condulet Box Includes cap and screws. Box for 3/4" inch Type LB ConduitQuality12345Title for your review*Your review*Your name*Required fields* Send or Cancel
