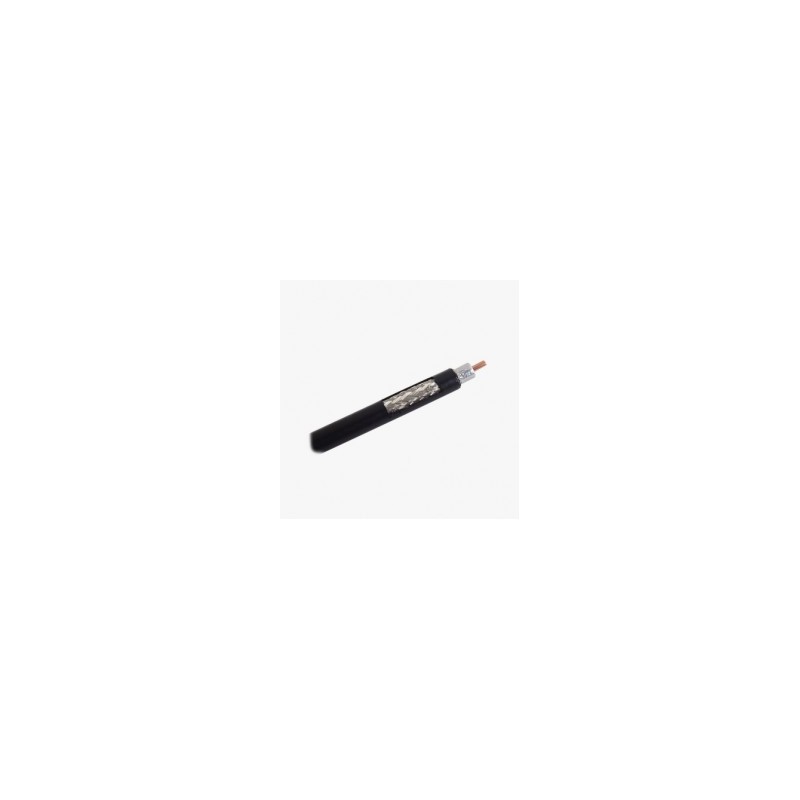

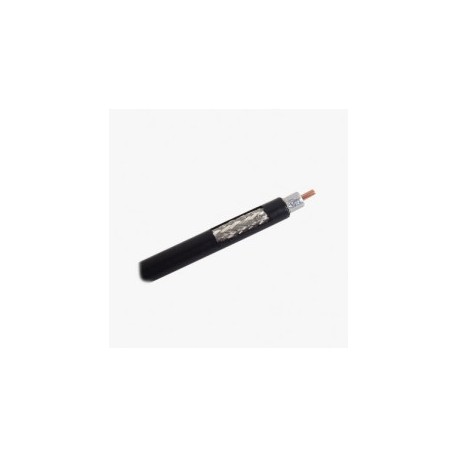

Times LMR high performance coaxial cable. Superior design with great flexibility and low loss, recommended for a wide variety of applications that require an easy-to-install, low-loss RF cable.
Times LMR high performance coaxial cable.
Superior design with great flexibility and low loss, recommended for a wide variety of applications that require an easy-to-install, low-loss RF cable.
Advantages offered by the cable
Direct replacements for model: CNTCOAX400
Performance similar to that offered by corrugated copper cables.
Superior flexibility.
Greater ease and speed of installation.
Better shielding and lower loss compared to other RG type cables.
Ideal for:
Short cable installations.
Jumpers for communication systems.
Any application such as: radio communication systems, GPS, WiMax, Satellite, RF ID, DAS Systems, etc.
MRL-400
Technical specifications
Impedance: 50 Ohm.
Attenuation in 30 meters. at 150MHz: 1.5dB.
Attenuation in 30 meters. at 450MHz: 2.7dB.
Shielding Effectiveness: greater than 90 dB
Speed Factor: 85%.
Nominal Power: 0.83 kW at 450 MHz.
Construction Specifications
Center Conductor Material: Copper Clad Aluminum.
Cable Outer Diameter: 10.29mm
Inner Driver Diameter: 2.74mm.
Shielding: Tinned Copper Mesh.
Dielectric Insulation: Polyethylene foam
