Contacto magnetico BLANCO Gap 3/4 de EMBUTIDO Tipo Taquete Compatible paneles DSC / RISCO / BOSCH

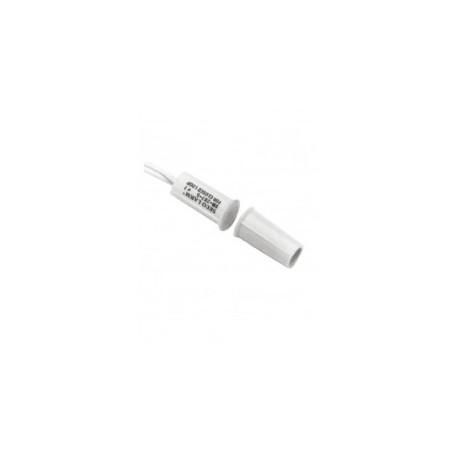

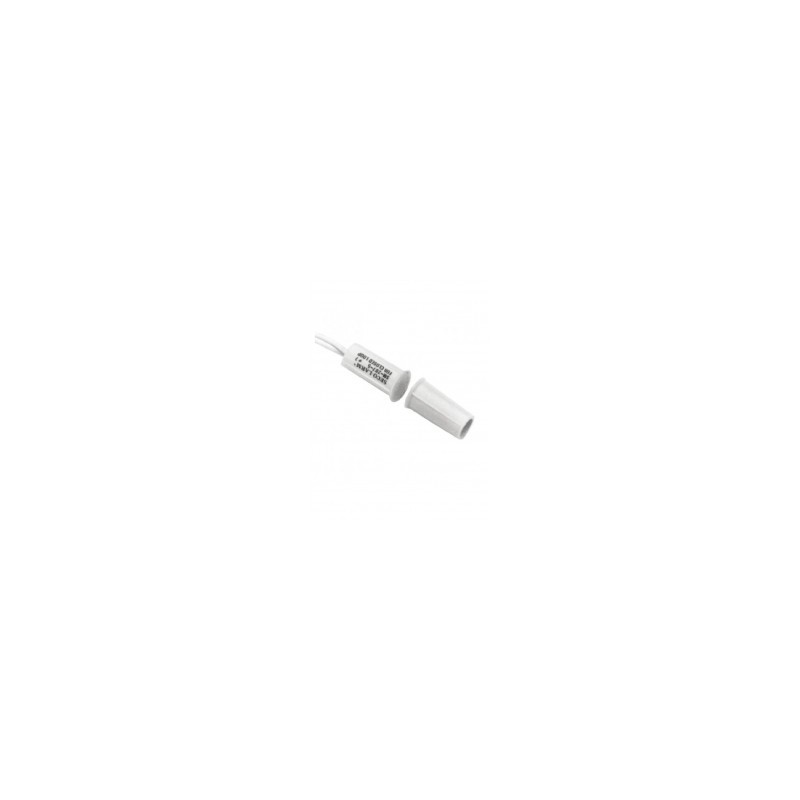

FLUSH-MOUNTED MAGNETIC CONTACT     Recessed magnetic contact for doors/windows, Aesthetic White color with 10 mm Gap   Characteristics:   Used to protect sliding doors and windows where space is limited 3 /8″ (10mm) Pressure Mount 15″ (38cm) lead wires Contact reed switch is SPST, rhodium deactivated on gold plating for longer life Unique glue/epoxy compound protects reed switch for closed circuits 3/8″ (10mm) Gap Limited lifetime warranty Specifications:   Circuit TypeN.C. Contact Rating 1.0A@10VDC (max), 10W (max) Temperature -15º~+160º F (-25º~70º C) Switch dimensions 3/4" x 7/16" x 3/8" (19 x 11 x 9 mm) Magnet dimensions 3/4" x 7/16" x 3/8" (19 x 11 x 9 mm) DEVICE DIAGRAM installation instructions   1. Mount the contact above the door or window in the frame. For doors, make sure the mount is furthest from the hinged side of the door.   2. Connect two wires to the contact terminals and to the alarm control panel   3. Mount the magnet on the door/window so that it faces the contact. Make sure the gap between the contact and the magnet does not exceed 3/8" (10mm).Reference ENFORCE 2075In stock85 ItemsSpecific References Write your reviewNo customer reviews for the moment.Write your reviewContacto magnetico BLANCO Gap 3/4 de EMBUTIDO Tipo Taquete Compatible paneles DSC / RISCO / BOSCHQuality12345Title for your review*Your review*Your name*Required fields* Send or Cancel
