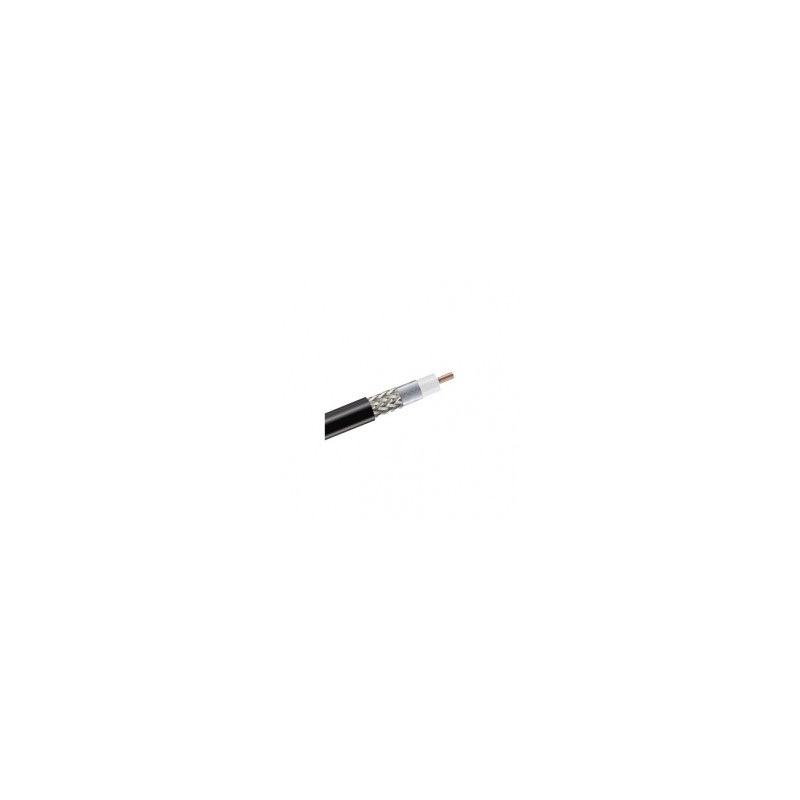

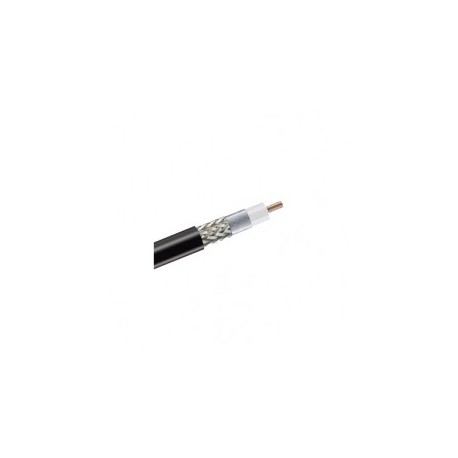

1 Meter Coaxial Cable 90% Shielded, RoHS Certified, Aluminum Clad Copper Conductor, 50 Ohms

Electrical Specifications: Impedance: 50 Ohm. Cable Outer Diameter: 10.29 mm Speed ​​Factor: 85% Inner Conductor Diameter: 2.74 mm.(AWG 10) Center Conductor Material: Solid aluminum with copper plating. Attenuation in 30 meters. at 450MHz: 2.7dB Attenuation in 30 meters. at 800MHz: 3.7dB Shielding: Tinned Copper Mesh + Aluminum Tape. Dielectric Insulation: Foamed Polyethylene. Shielding Effectiveness: Greater than 90 dB. Minimum Bend Radius: 25.4 mm. Weight per meter: 0.1 Kg. Maximum Frequency: 6GHz. Average Power: 830 W at 450 MHz. Operating Temperature: -40 ºC to +85 ºC *PRICE PER METER*CNT-400Reference CNTCOAX400In stock310 ItemsSpecific References Write your reviewNo customer reviews for the moment.Write your review1 Meter Coaxial Cable 90% Shielded, RoHS Certified, Aluminum Clad Copper Conductor, 50 OhmsQuality12345Title for your review*Your review*Your name*Required fields* Send or Cancel
