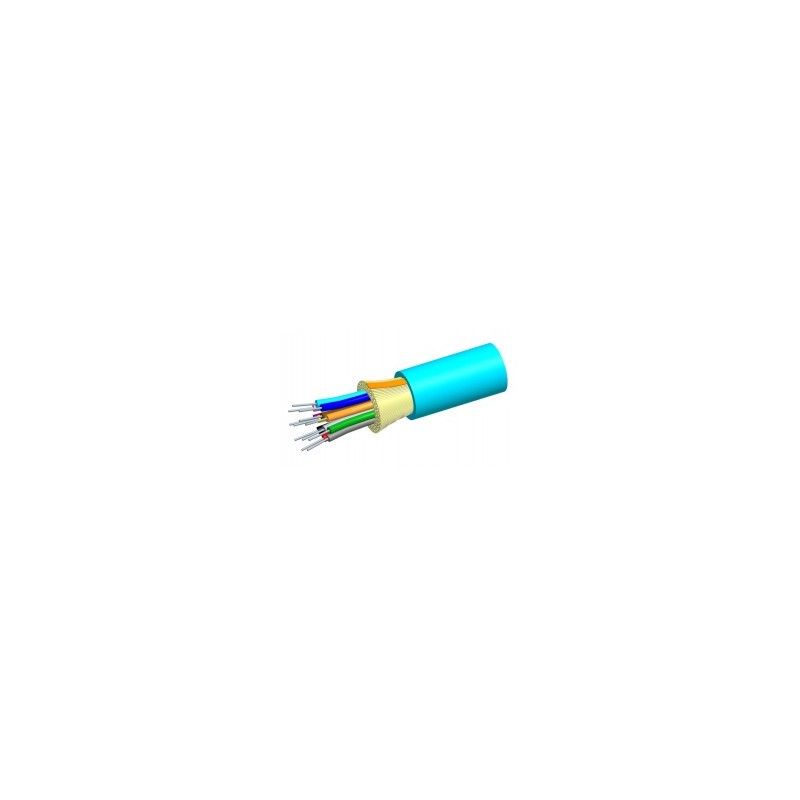

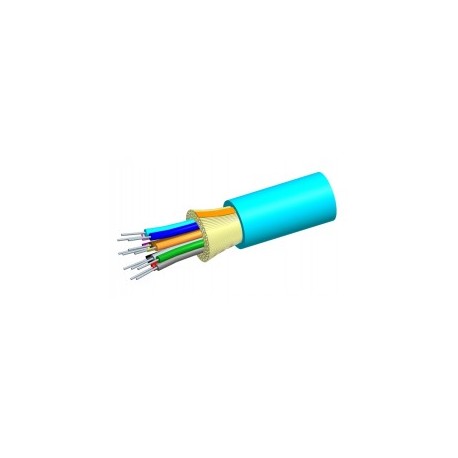

(1 Meter) Indoor fiber optic riser MM 50/125 LazrSpeed ​​300 6 fibers 6 wires R-006-DS-5L-FSUAQ

(1 Meter) Indoor fiber optic riser MM 50/125 LazrSpeed ​​300 6 fibers 6 wires R-006-DS-5L-FSUAQ

Más detalles

$ 66

Más información

Product Classification Regional Availability Asia | Australia/New Zealand | Latin America | Middle East/Africa | North America Portfolio CommScope® Product Type Fiber indoor cable Product Series R-DS General Specifications Cable Type Distribution Construction Type Non-armored Fiber Type, quantity 6 Jacket Color Aqua Jacket Marking Feet Subunit Type Gel-free Total Fiber Count 6 Dimensions Diameter Over Jacket 5.04 mm | 0.198 in Mechanical Specifications Minimum Bend Radius, loaded 76 mm | 2.992 in Minimum Bend Radius, unloaded 50 mm | 1.969 in Tensile Load, long term, maximum 200 N | 44.962 lbf Tensile Load, short term, maximum 667 N | 149.948 lbf Compression 10 N/mm | 57.101 lb/in Compression Test Method FOTP-41 | IEC 60794-1 E3 Flex 100 cycles Flex Test Method FOTP-104 | IEC 60794-1 E6 Impact 5.88 N-m | 52.042 in lb Impact Test Method FOTP-25 | IEC 60794-1 E4 Strain See long and short term tensile loads Strain Test Method FOTP-33 | IEC 60794-1 E1 Twist 10 cycles Twist Test Method FOTP-85 | IEC 60794-1 E7 Vertical Rise, maximum 500 m | 1640.42 ft Optical Specifications Fiber Type OM3, LazrSPEED® 300 | OM3, LazrSPEED® 300 Environmental Specifications Installation temperature -20 °C to +70 °C (-4 °F to +158 °F) Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F) Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F) Cable Qualification Standards ANSI/ICEA S-83-596 | Telcordia GR-409 Environmental Space Riser Flame Test Listing NEC OFNR (ETL) and c(ETL) Flame Test Method UL 1666 Environmental Test Specifications Heat Age -20 °C to +85 °C (-4 °F to +185 °F) Heat Age Test Method IEC 60794-1 F9 Low High Bend -20 °C to +70 °C (-4 °F to +158 °F) Low High Bend Test Method FOTP-37 | IEC 60794-1 E11 Temperature Cycle -20 °C to +70 °C (-4 °F to +158 °F) Temperature Cycle Test Method FOTP-3 | IEC 60794-1 F1 Packaging and Weights Cable weight 23 kg/km | 15.455 lb/kft Reference 700208143In stock561 ItemsSpecific References Write your reviewNo customer reviews for the moment.Write your review(1 Meter) Indoor fiber optic riser MM 50/125 LazrSpeed ​​300 6 fibers 6 wires R-006-DS-5L-FSUAQQuality12345Title for your review*Your review*Your name*Required fields* Send or Cancel
